OWS Hot Oil Unit 2020 Kenworth T880
Hot Oil Units

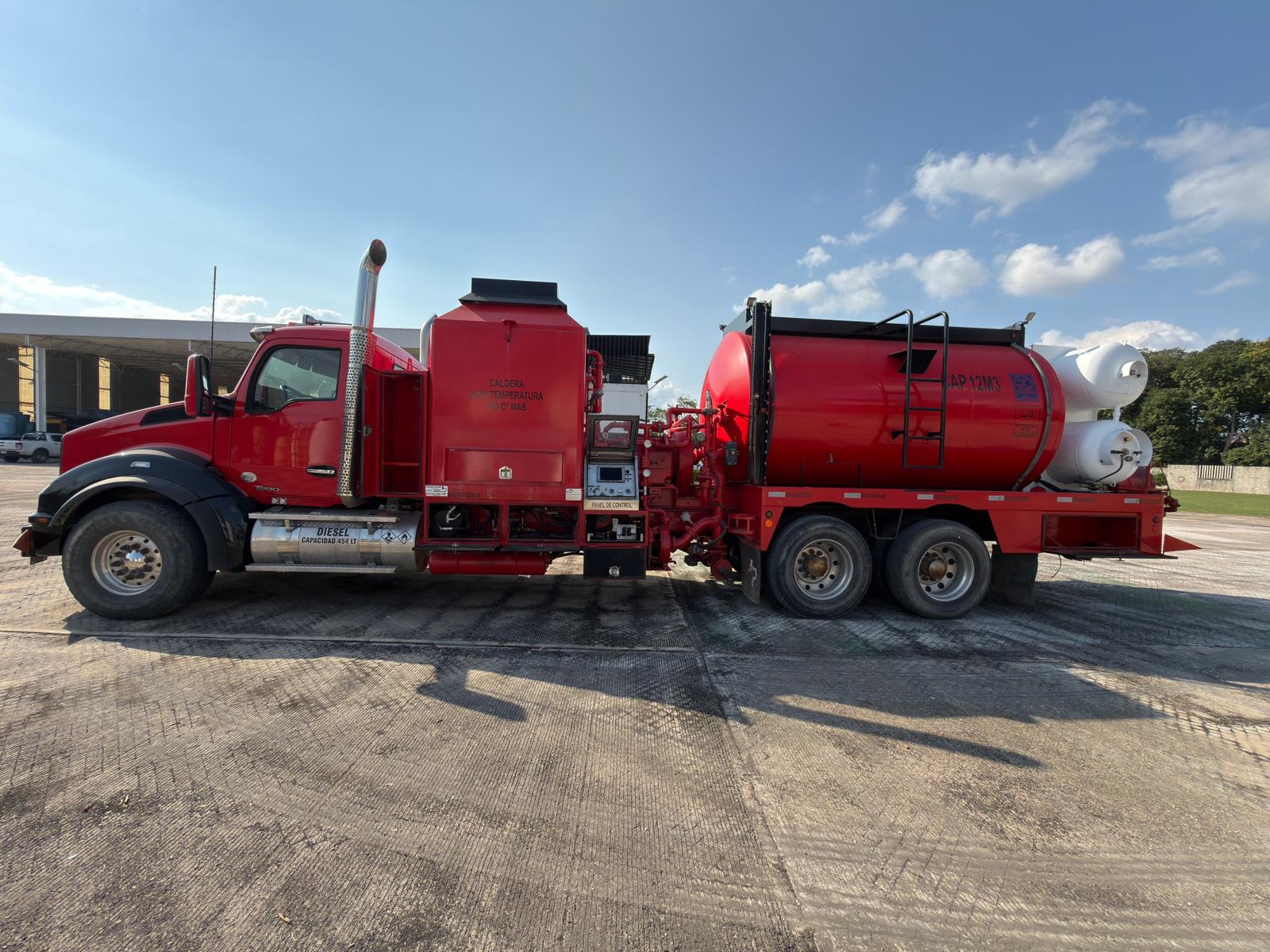

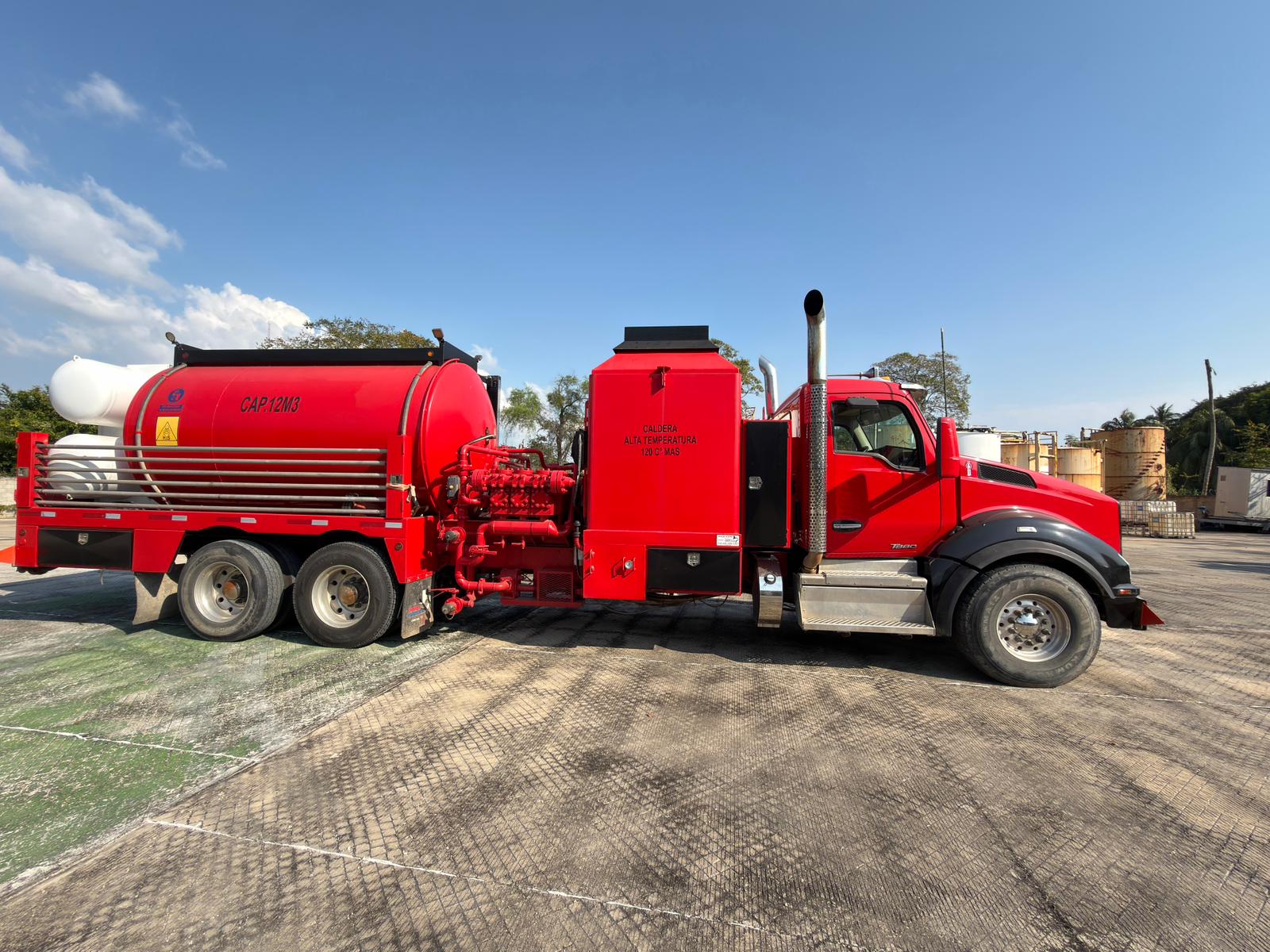

Kenworth T880 Hot Oil Unit featuring a Southtex 7M BTU heater and Gardner Denver 6,000 PSI Triplex pump. Designed for efficient paraffin removal and well heating operations.
Key specifications
Feature
Specification
Equipment Type
Hot Oil Unit
Max Pressure
6,000 PSI
Chassis Make/Model
Kenworth T880 (Year 2020)
Engine
Cummins (Series: 80134566)
Triplex Pump
6,000 PSI
Heater (Burner)
Southtex H575 (LPG)
Heating Capacity
Input: 7 Million BTU / Output: 5.8 Million BTU
Tank Capacity
62.9 BBL (Detailed) / 75 BBL (Nominal)
Auxiliary Pumps
Includes a Viking (Durco) pump and a Bowie 3300 pump
Coil System:
Diameter coil inside an A-36 Steel furnace
Usage Instructions
- Heating Operations: The unit uses an LPG heater with an input capacity of 7,000,000 BTU.
- Pumping Limits: The Gardner Denver Triplex pump is rated for fluid discharge up to 6,000 PSI.
- Mobility: Built on a Kenworth T880 truck chassis for highway and off-road site access.
Applications
- Primary Function: Hot Oil Services.
- Typical Uses: In the oilfield, these units are typically used for:
- Heating fluids (oil/water) for injection into wells.
- Removing paraffin/wax deposits from well tubing (dewaxing).
- Testing tubing or casing (using the high-pressure pump).
