BHJ-03 – Caterpillar Industrial 3406 engine
Hydraulic Jet Pumps

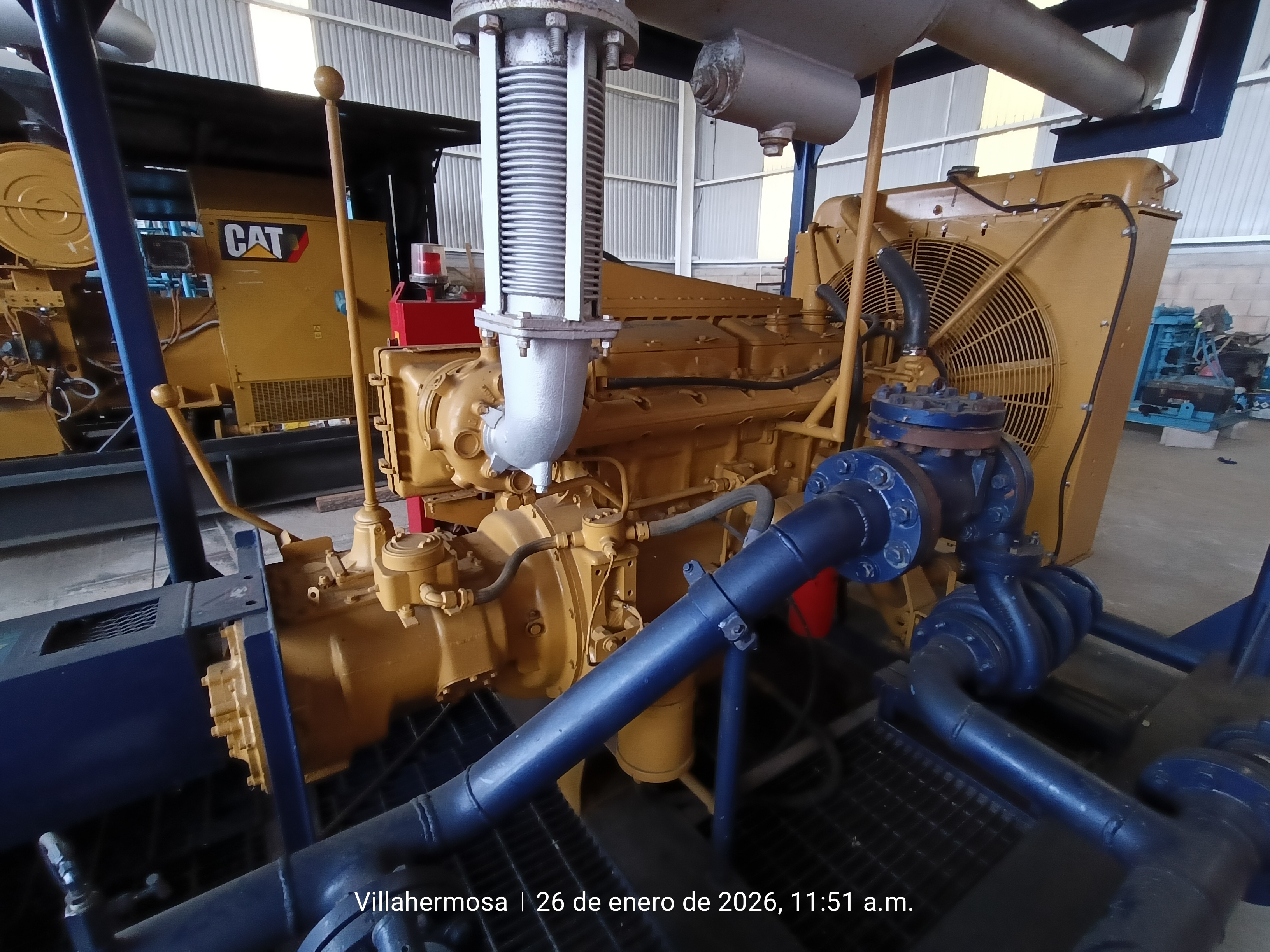

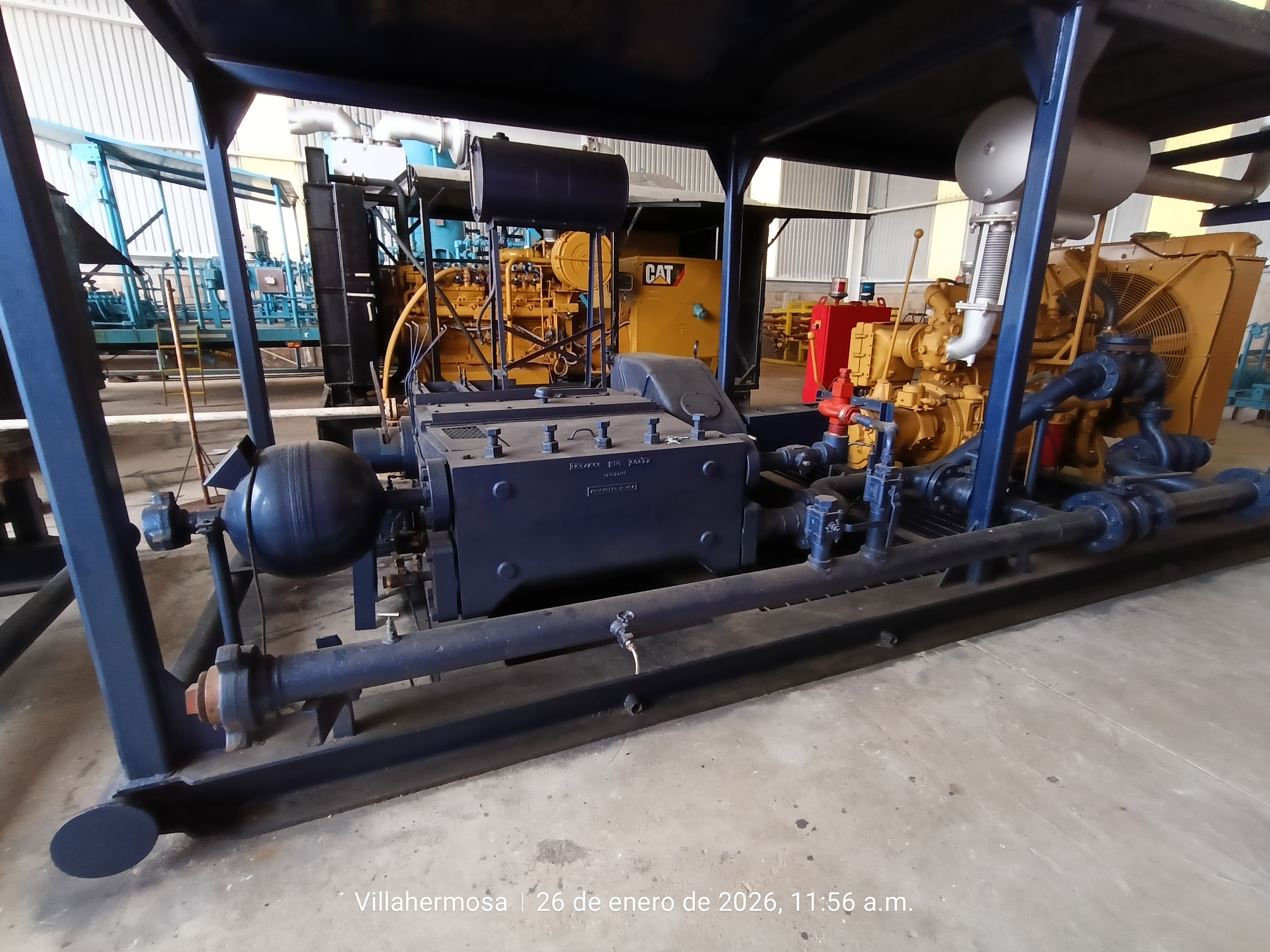

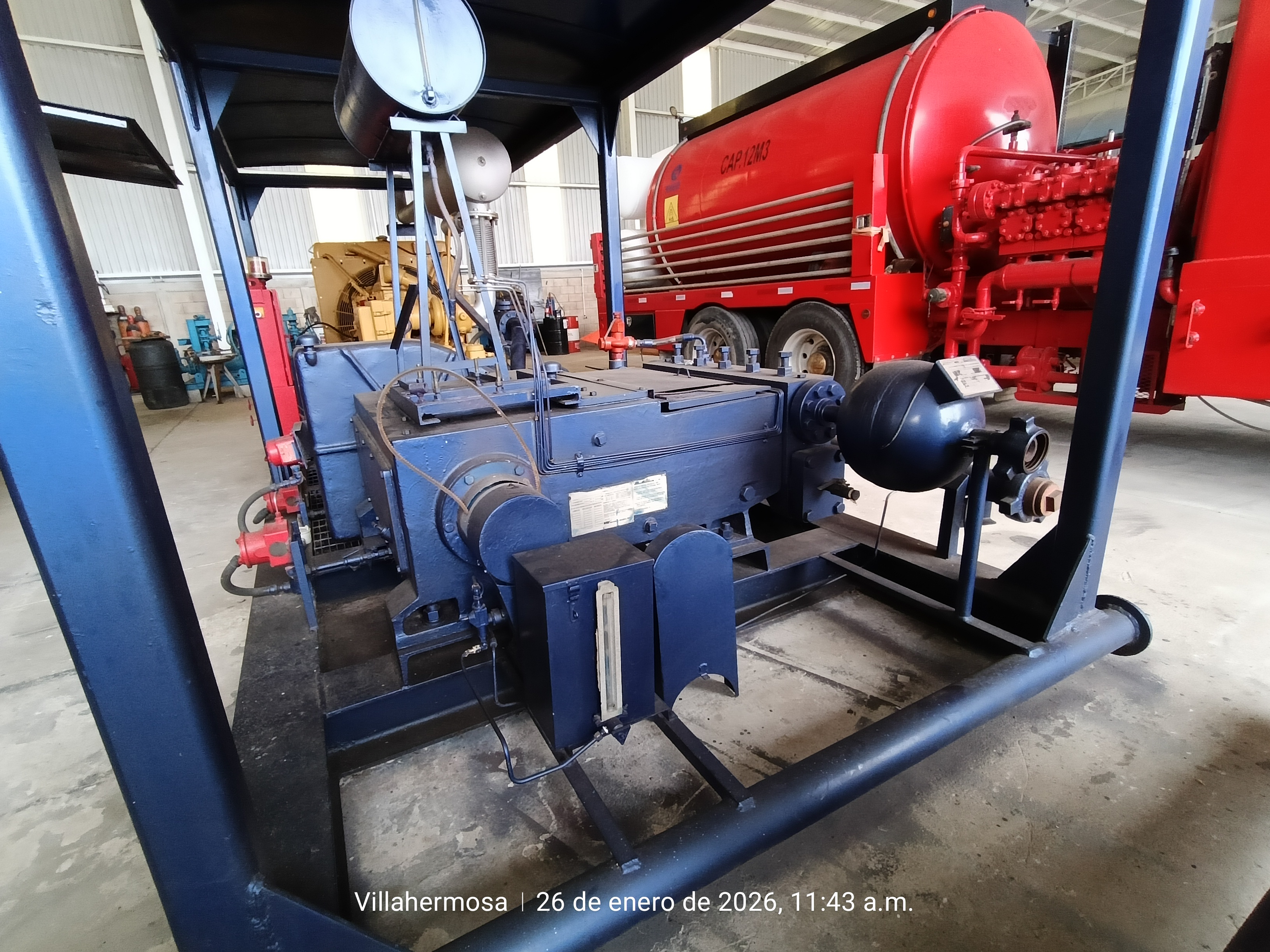

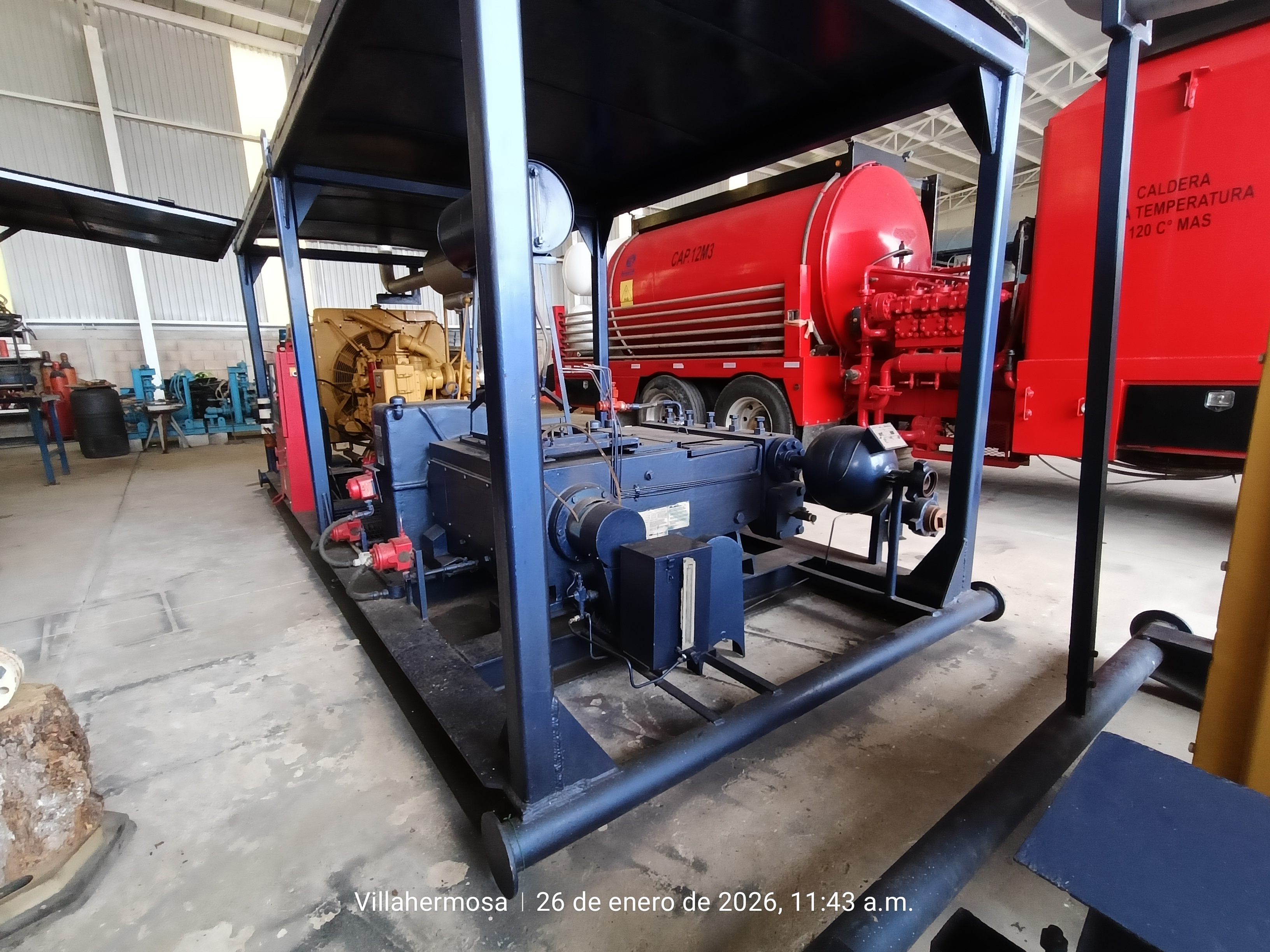

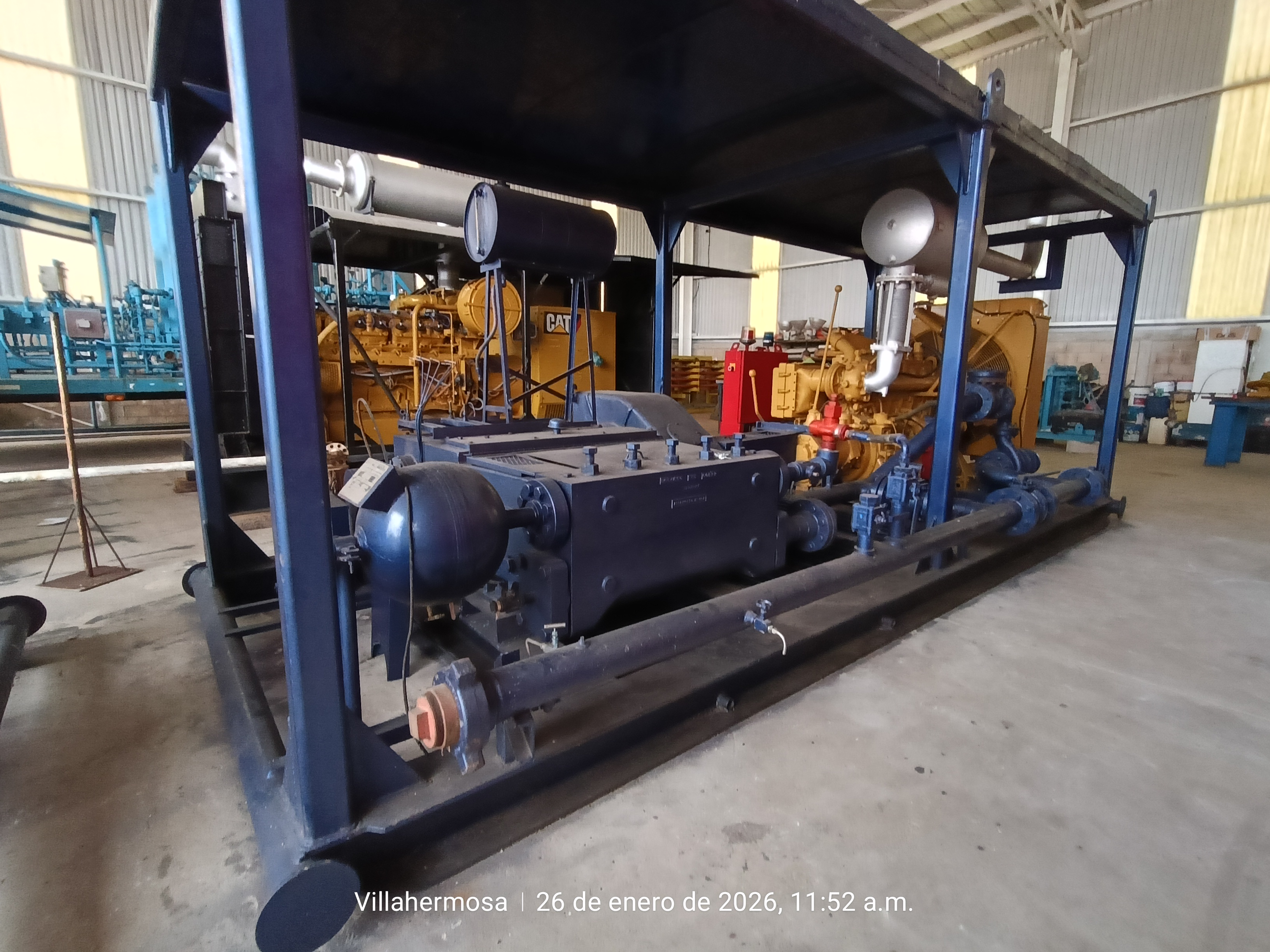

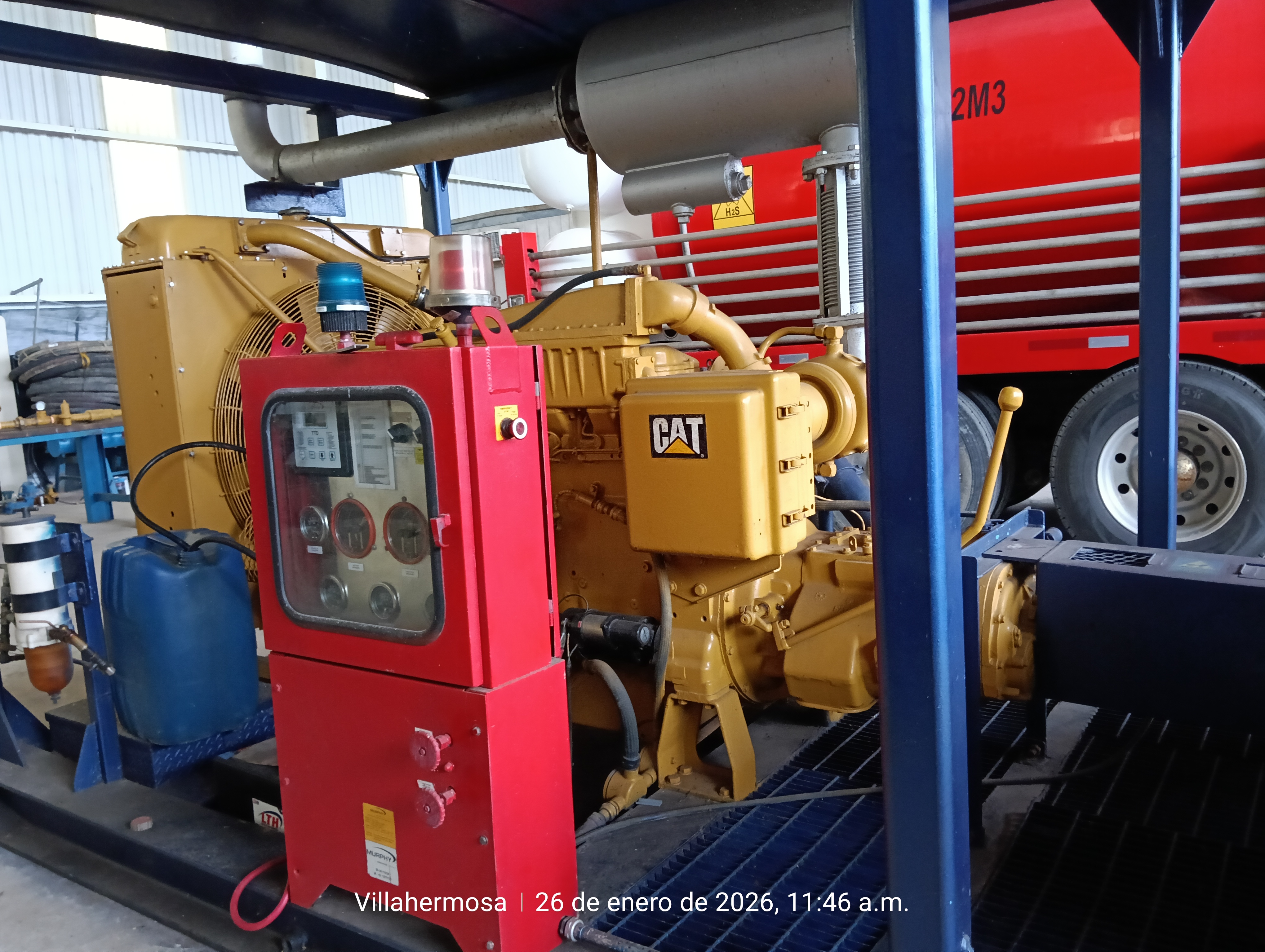

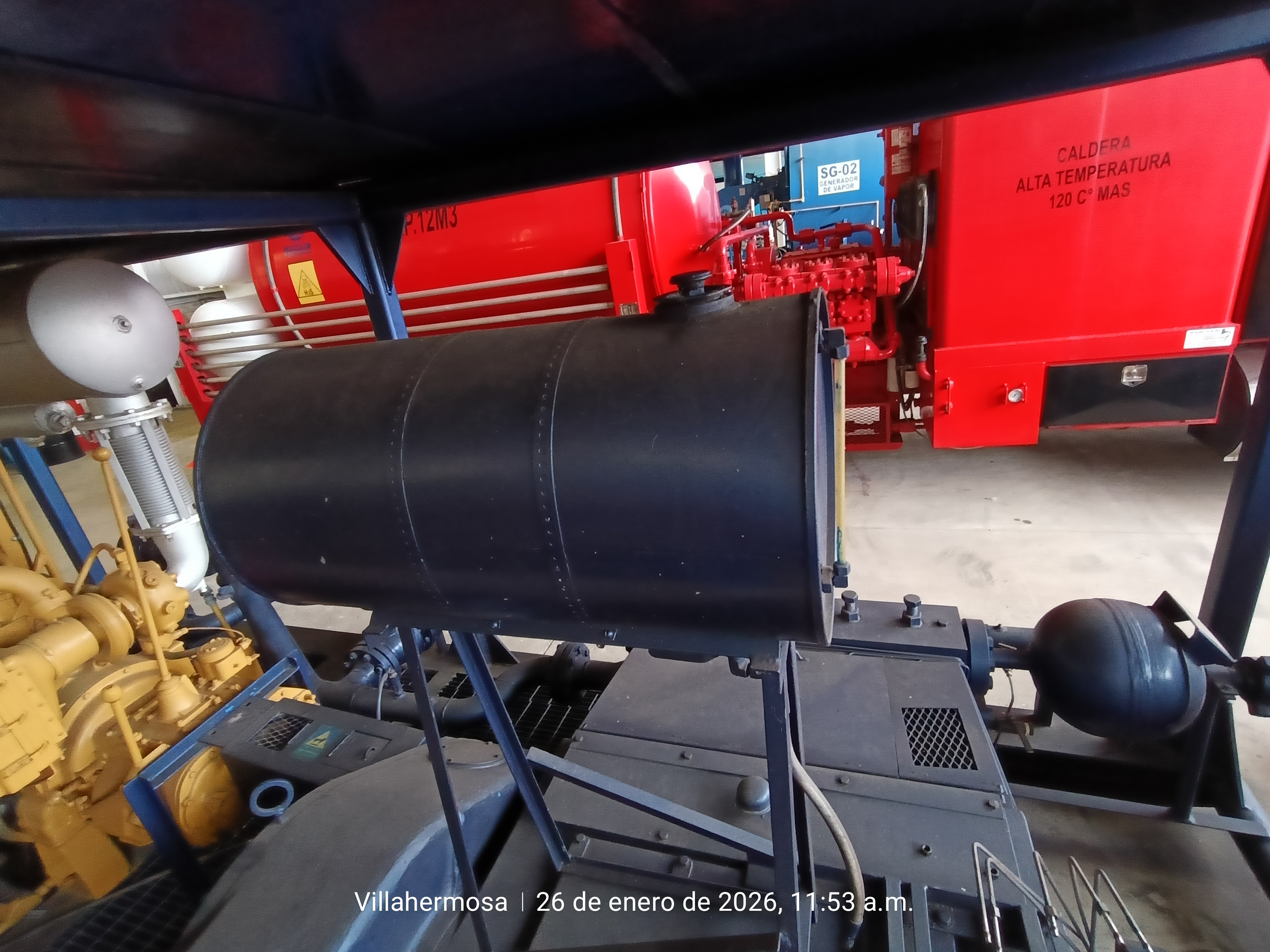

BHJ-03 is a near-new unit featuring a Caterpillar 3406 industrial engine (240 HP @ 1800 rpm) and NOV 3000-5H quintuplex pump with only 151 operating hours. The NOV 300Q W300H reducer (4.38:1) and 5" stroke / 1 7/8" plungers deliver up to 3,400 PSI and about 4,100 BFPD. This configuration provides high reliability and extended service life, making BHJ-03 an excellent choice for critical injection, disposal or production boosting applications where downtime must be minimized.
Key specifications
Feature
Specification
Unit / model
BHJ-03 – Caterpillar Industrial 3406 engine.
Pump power rating
300 HP @ 400 rpm (input) / 270 HP @ 400 rpm (output).
Engine power
240 HP @ 1800 rpm (serial 6TB18474, year 2016).
Operating hours
151 hours
Main pump
300 HP @ 400 rpm (input) / 270 HP @ 400 rpm (output).
Production capacity
4,100 BFPD.
Maximum allowable working pressure
3,400 PSI.
Plungers
5" stroke / 1 7/8" plunger diameter / 12 gallons pump oil capacity.
Reducer and transmission
NOV 300Q W300H gear reducer, serial 2387936-2, ratio 4.38:1, 300 HP @ 1750 rpm; Fuller T905A gearbox, SAE 90 oil, 5 gallons.
