BHJ-02 – Caterpillar Industrial 3406 engine
Hydraulic Jet Pumps

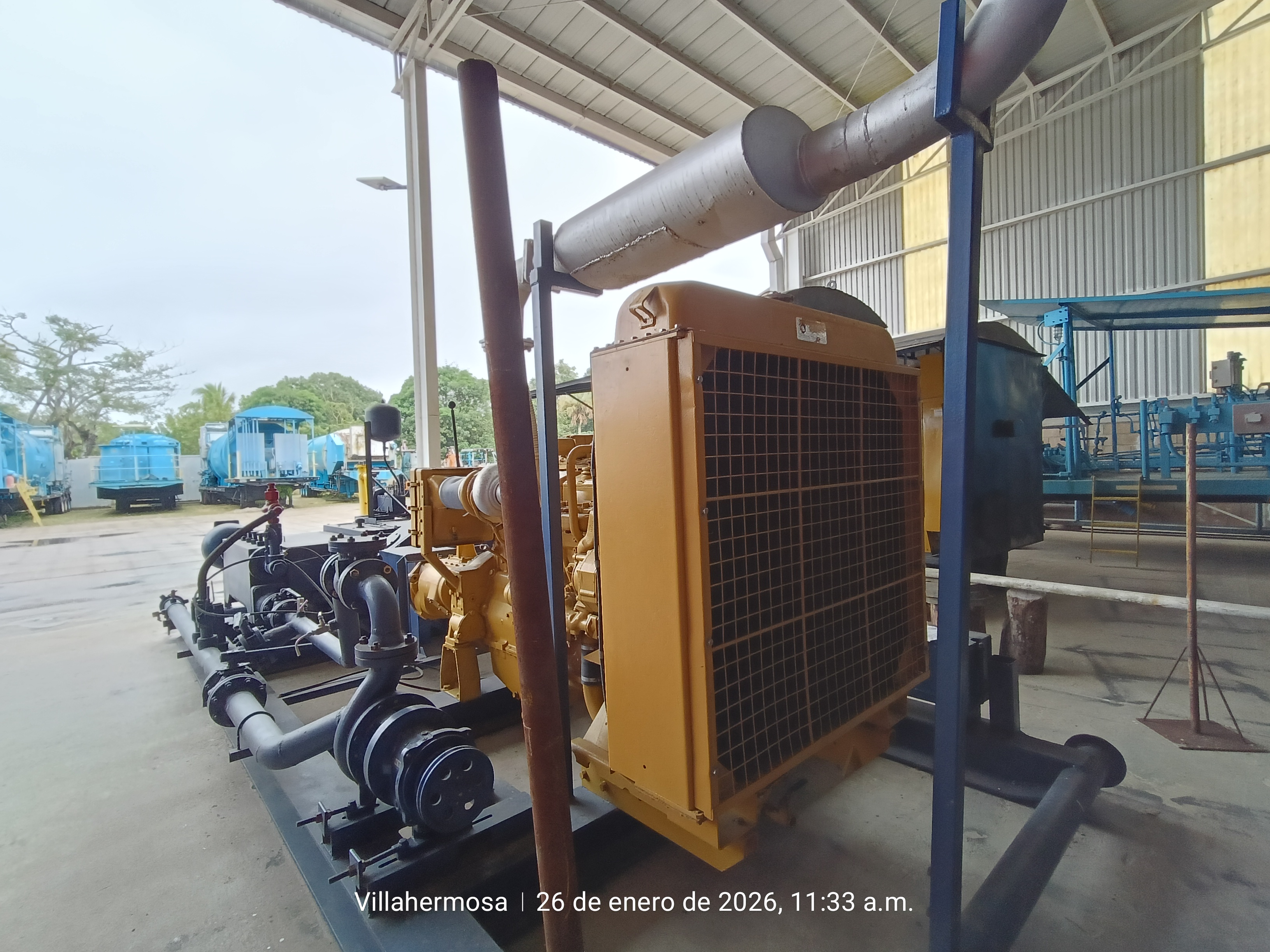

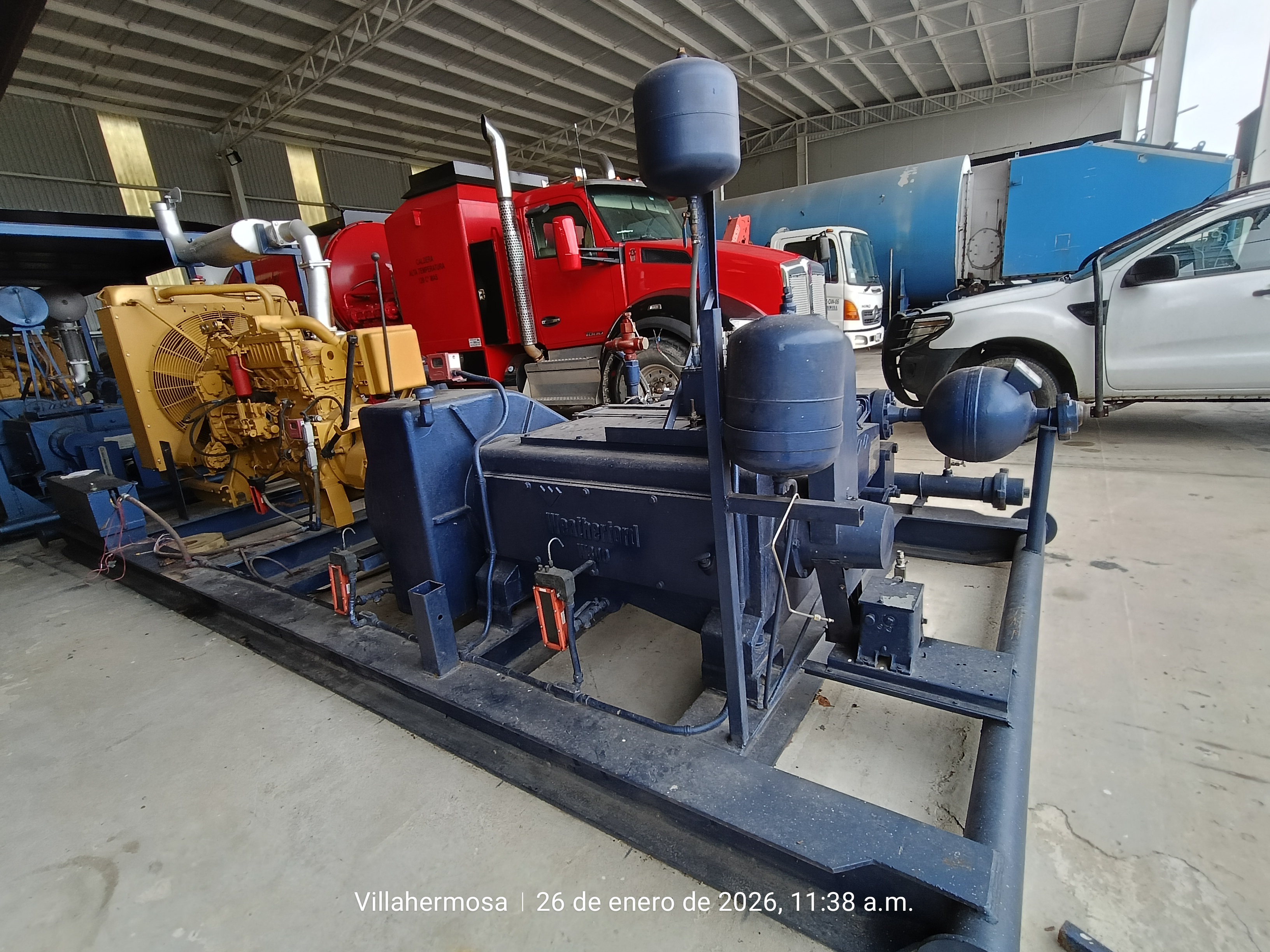

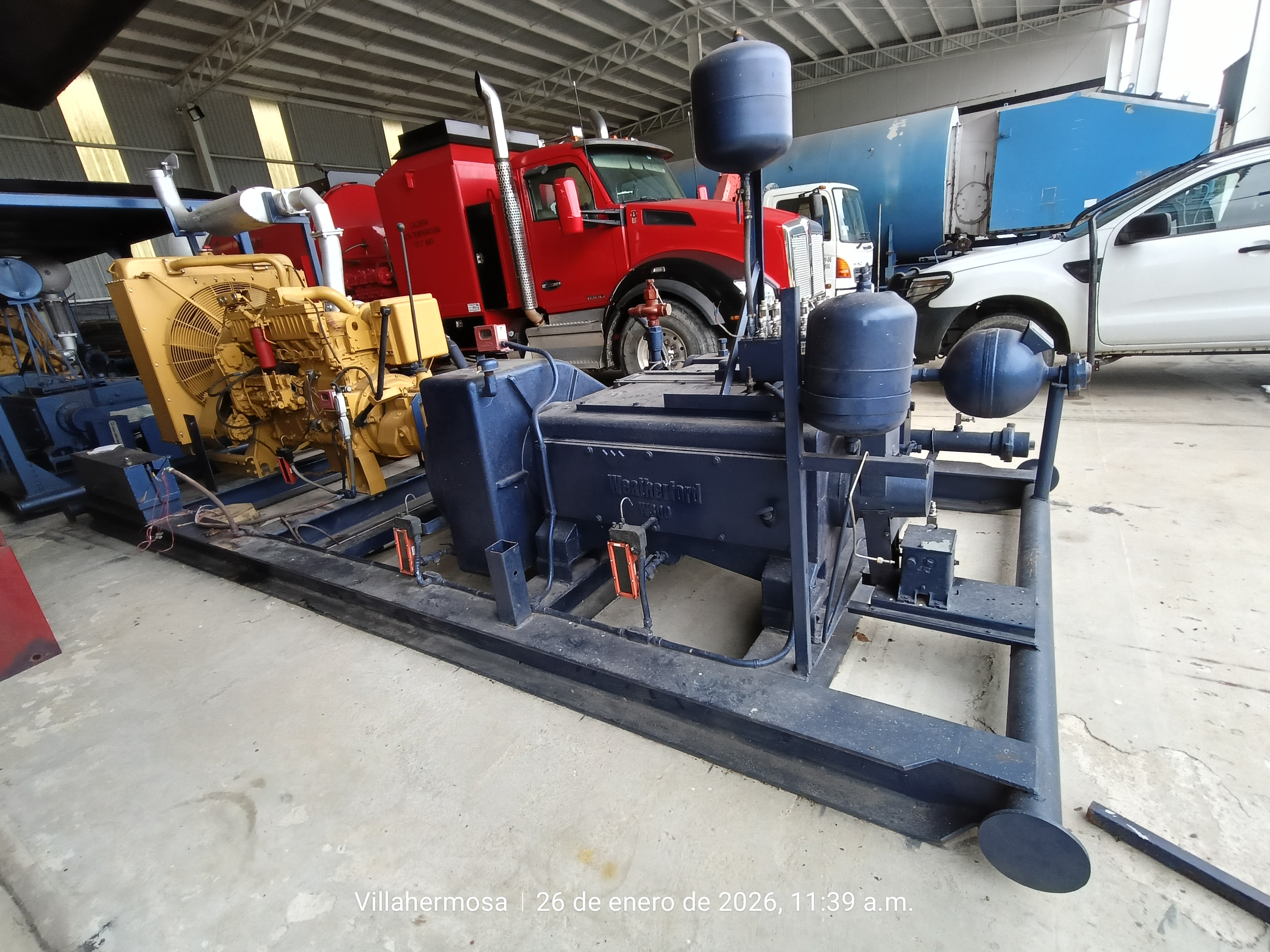

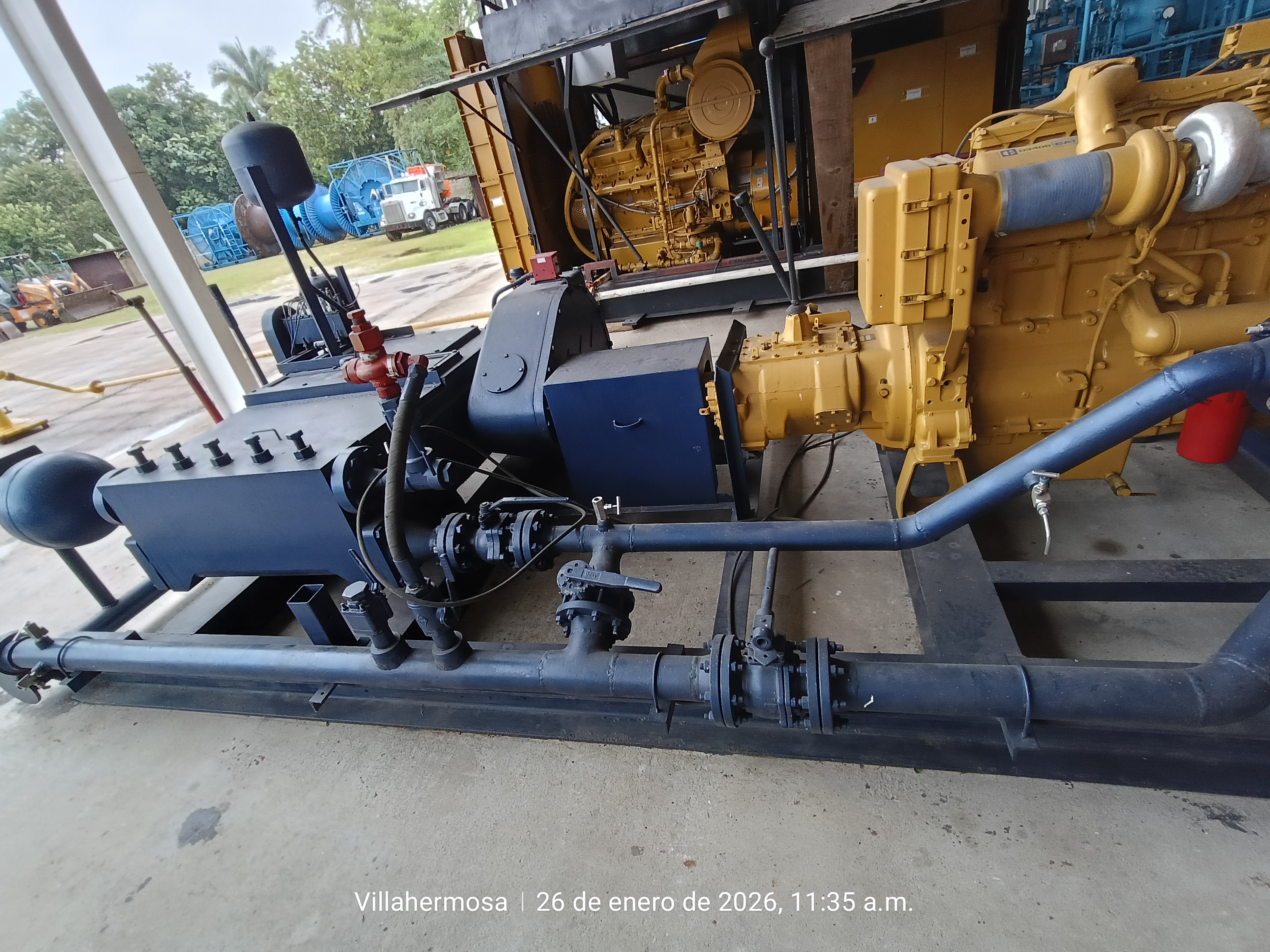

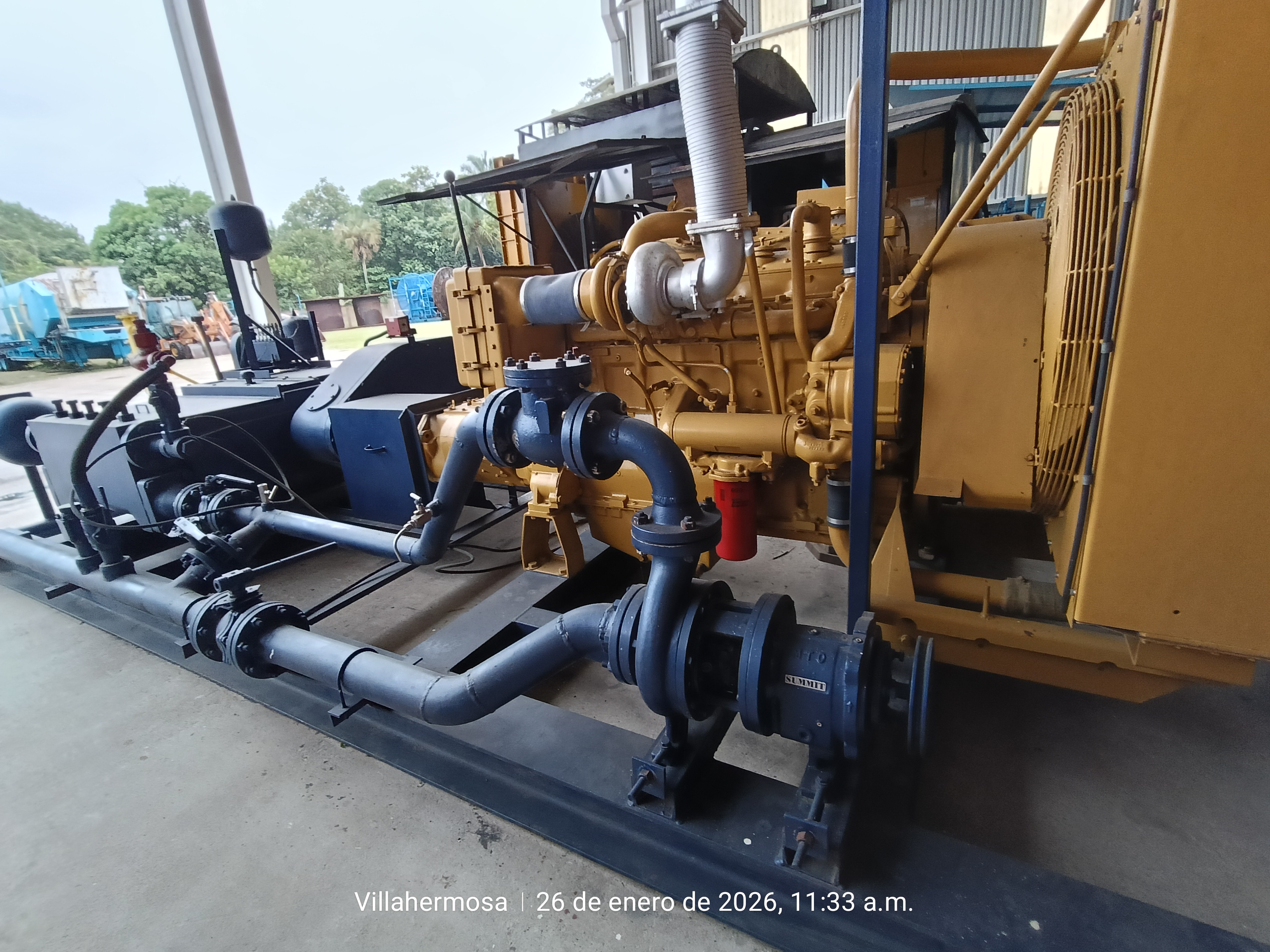

BHJ-02 combines a Caterpillar 3406 industrial engine (240 HP @ 1800 rpm) with an NOV 3000-5H quintuplex pump and NOV 300Q W300H gear reducer. Rated at 300 HP @ 400 rpm, this unit delivers up to 3,400 PSI and approximately 4,100 BFPD, using 5" stroke and 1 7/8" plungers with 12 gallons of pump oil capacity. With moderate operating hours and a robust drivetrain, BHJ-02 is suited for water injection, chemical injection and production support in demanding field environments.
Key specifications
Feature
Specification
Unit / model
BHJ-02 – Caterpillar Industrial 3406 engine.
Pump power rating
300 HP @ 400 rpm (input) / 270 HP @ 400 rpm (output).
Engine power

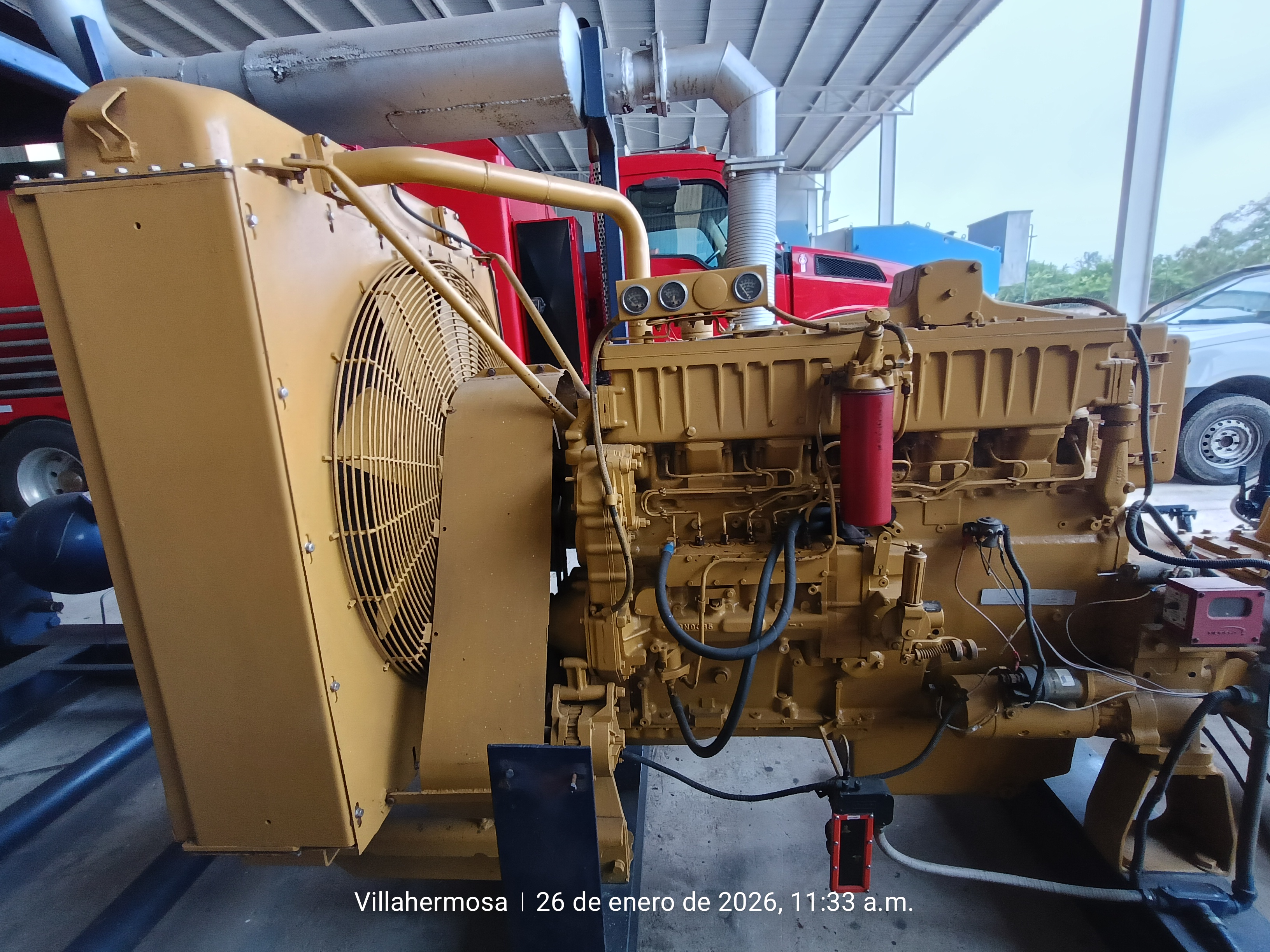

240 HP @ 1800 rpm (serial 6TB12551, year 2014).
Operating hours
5,175 hours.
Main pump
300 HP @ 400 rpm (input) / 270 HP @ 400 rpm (output).
Production capacity
4,100 BFPD.
Maximum allowable working pressure
3,400 PSI.
Plungers
5" stroke / 1 7/8" plunger diameter / 12 gallons pump oil capacity.
Reducer and transmission

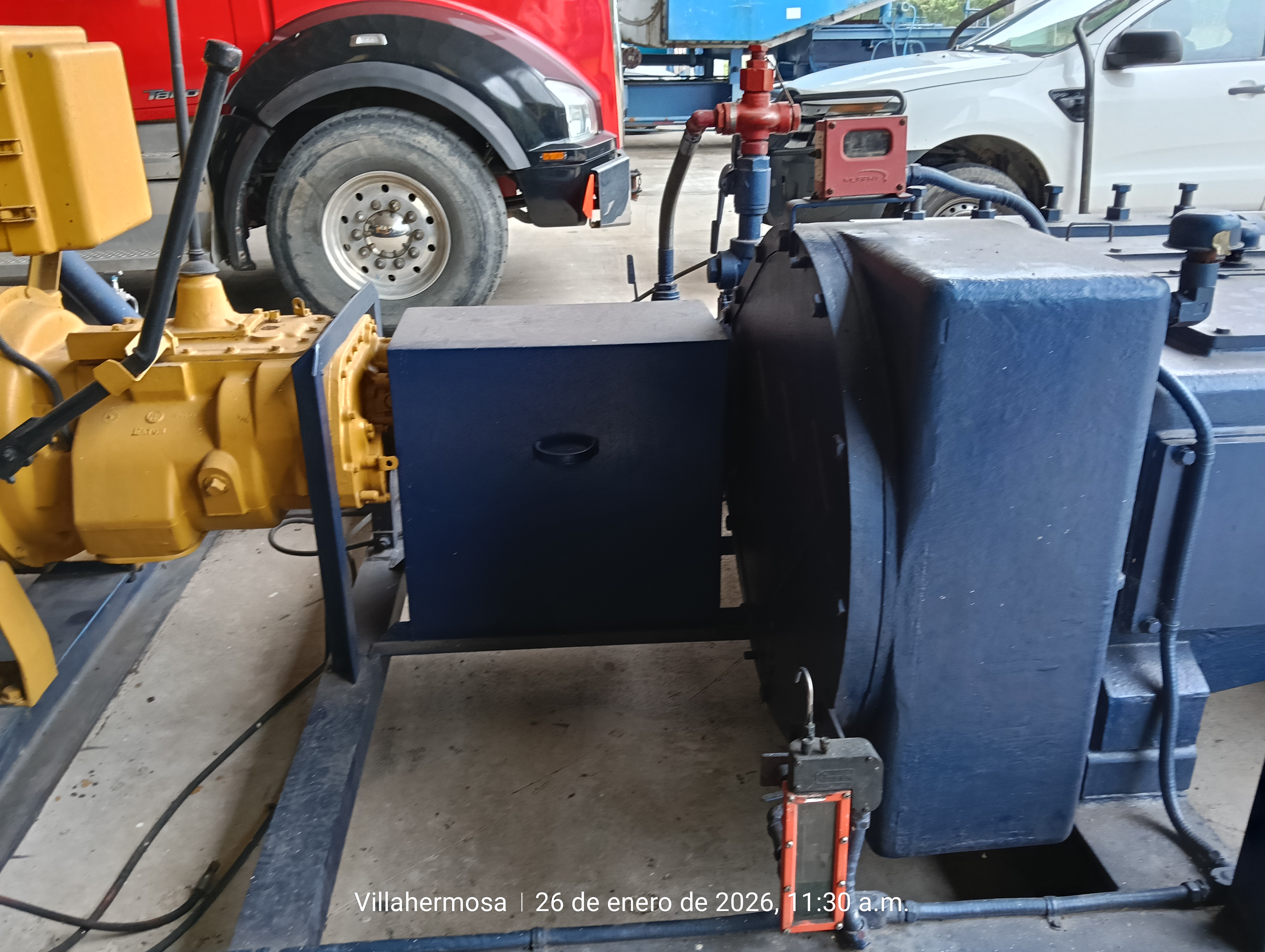

NOV 300Q W300H gear reducer, serial 20111-2, ratio 4.38:1, 300 HP @ 1750 rpm; Fuller T905A gearbox, SAE 90 oil, 5 gallons.
