MSI Hybrid (UAP-1002)
Pump Units

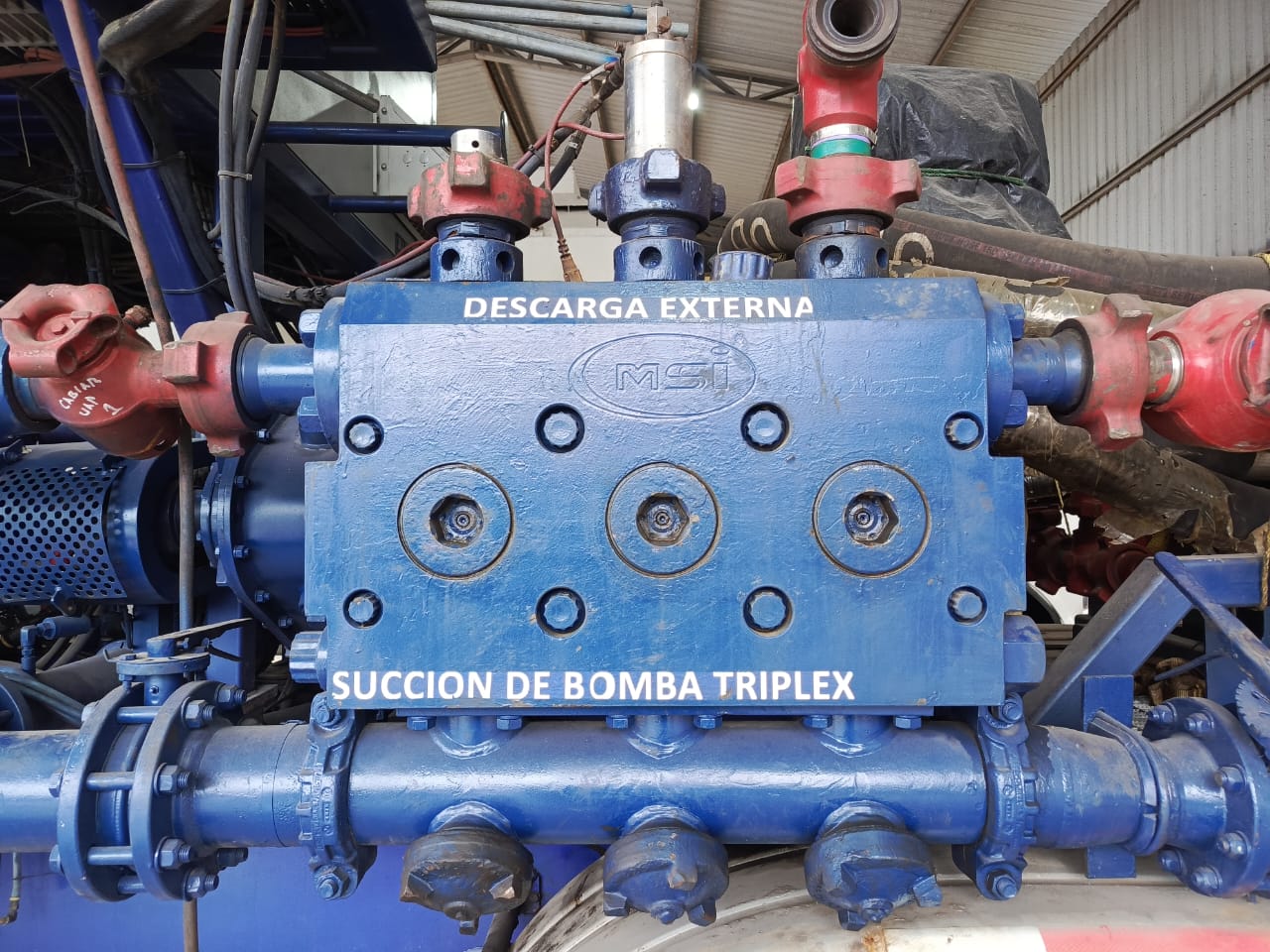

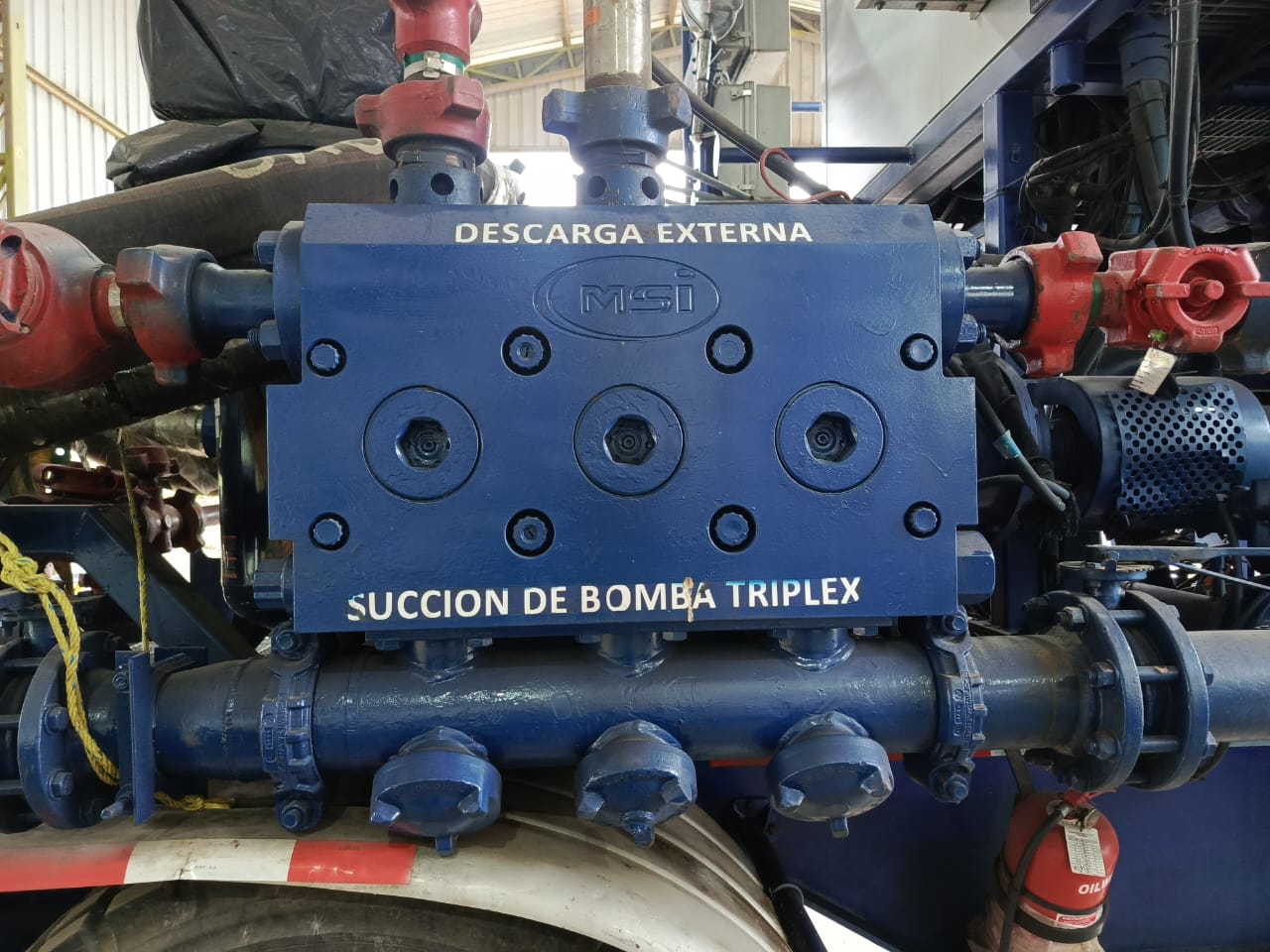

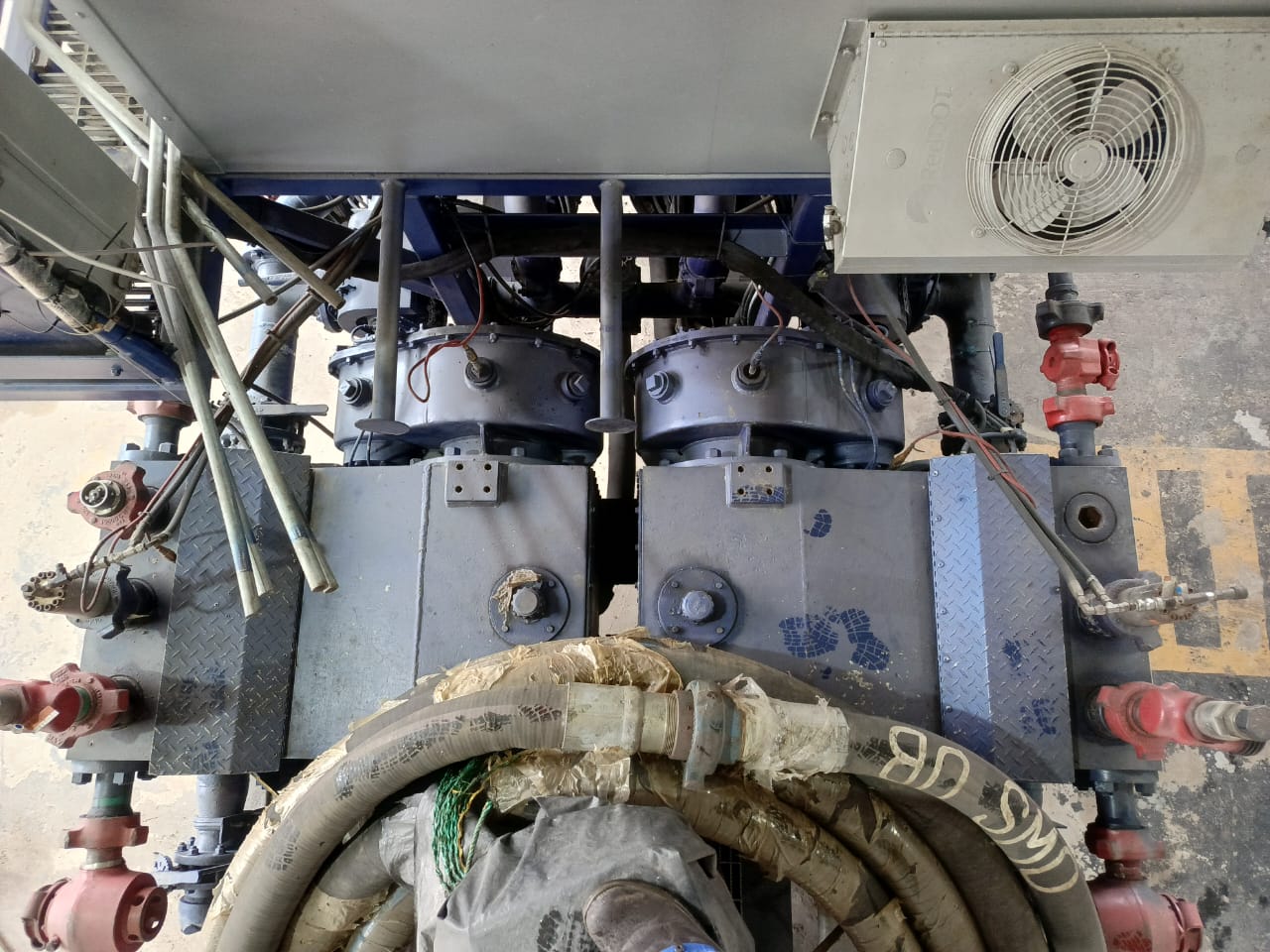

UAP-1002 is a trailer-mounted MSI Hybrid pumping unit designed for high-pressure stimulation and pumping operations. It is equipped with a 6"×5"×11" triplex pump rated up to 15,000 PSI and ~22 BBL/min (929 GPM), driven by dual Detroit Series 60 engines through Allison 4700 OFS transmissions. The unit includes a Mertz trailer, two 10 BBL displacement tanks with mixing and agitation, and a Parker centrifugal pump for fluid handling. Engineered to operate between −10°C and +50°C, it delivers reliable performance for cementing, acidizing and pressure pumping jobs.
Key specifications
Feature
Specification
Unit / designation
Trailer-mounted pumping unit UAP-1002, MSI Hybrid, data sheet OWS-UAP-1002.
Centrifugal pump
Parker 223148 centrifugal pump, 4" impeller; maximum 1100 GPM; minimum 30 PSI at shut-in; driven by hydraulic motor (rated around 2300 rpm).
Location / service
Country: Mexico; District: Tabasco; working connection FMC-1502.
Trailer & tanks
Mertz Manufacturing trailer; length 12.50 m, width 2.70 m, height 4.14 m, weight 37 tons; two 10-bbl displacement tanks, each with agitator and mixing system.
Main high-pressure pump
Parker 223148 centrifugal pump, 4" impeller; maximum 1100 GPM; minimum 30 PSI at shut-in; driven by hydraulic motor (rated around 2300 rpm).
Engines

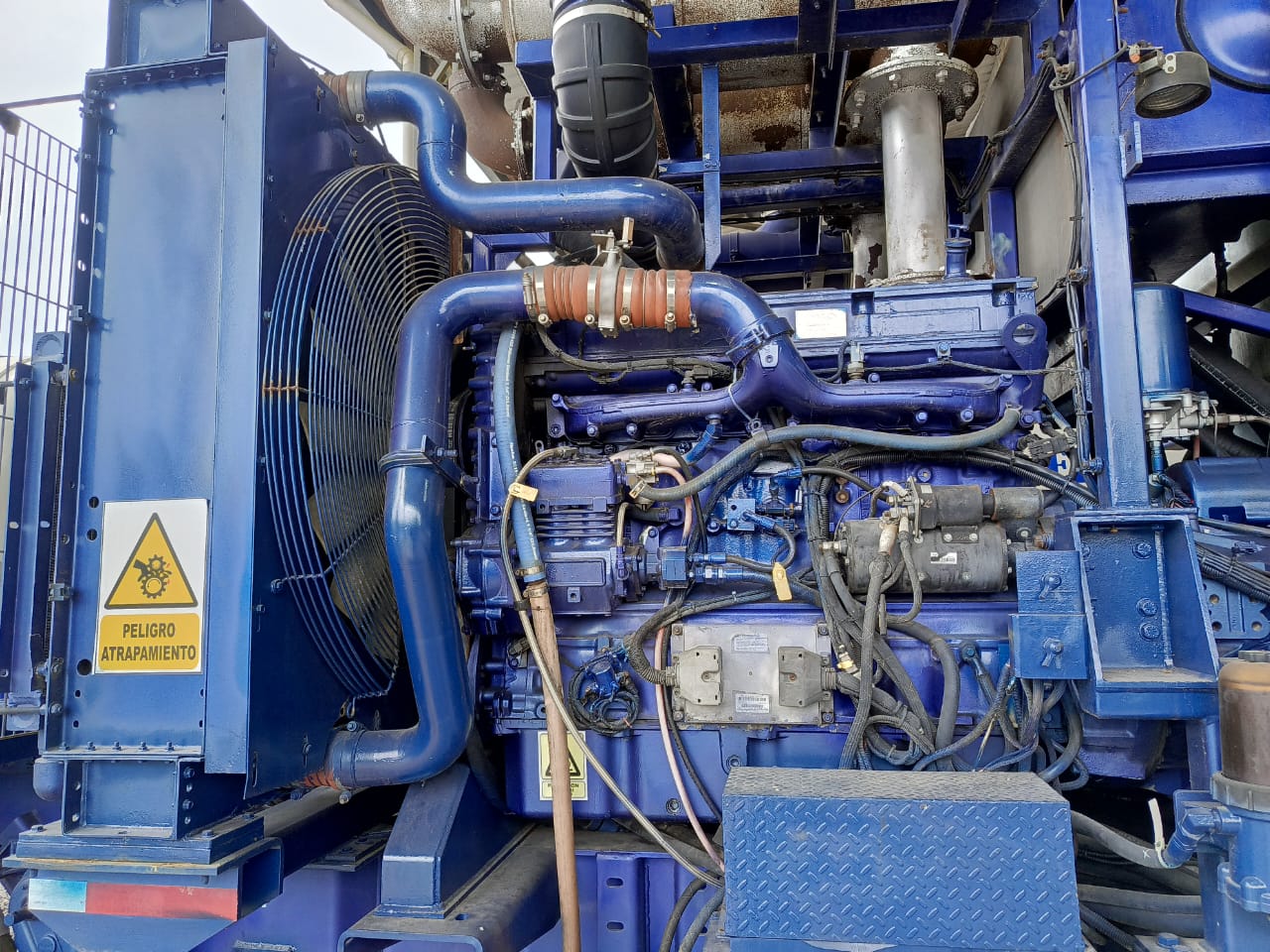

Two Detroit Series 60 diesel engines, model 6063HV39 (one per pump), diesel fuel.
Power & torque
Total power 600 HP; torque 2,508 N·m; governed speed 2,100 rpm; idle speed 500 rpm.

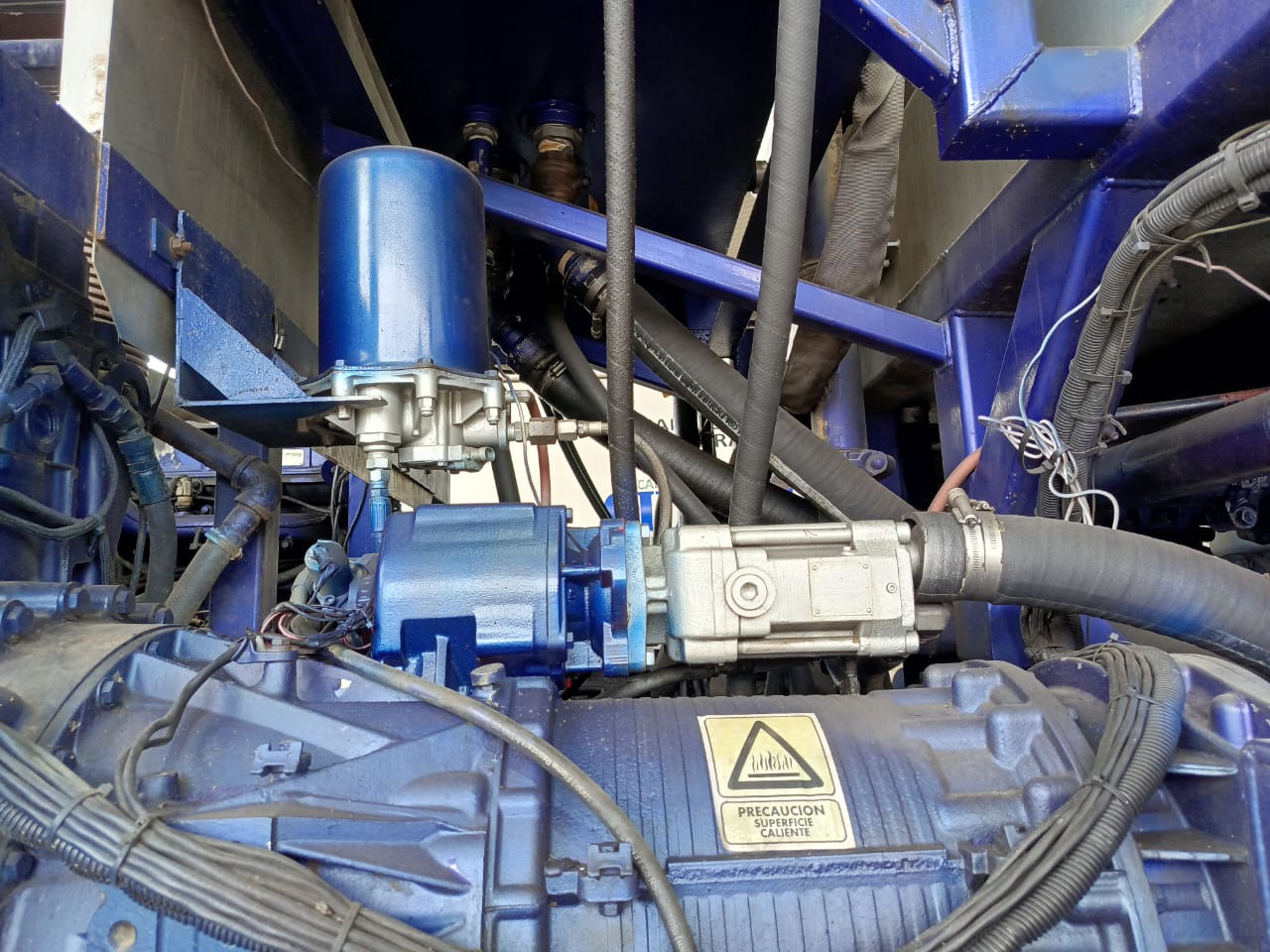

Transmissions
Two Allison 4700 OFS automatic transmissions, 7 speeds, serials 06R1043941 and 06R1043938.
Operating temperature limits
Designed to operate between 14°F and 122°F (−10°C to +50°C) without exceeding 205°F (95°C) at the radiator top tank or 180°F (82°C) for pump oil temperature.
